Square D EJB36025 circuit breaker — 25 A, 3-pole, 600Y/347 V
Specifications
| Stock # | GH-1132 |
|---|---|
| Make | Square D |
| Model | EJB36025 |
| Year | 2019 |
| Condition | Excellent |
| Quantity available | 1 breaker |
| Located at | Our yard |
Description

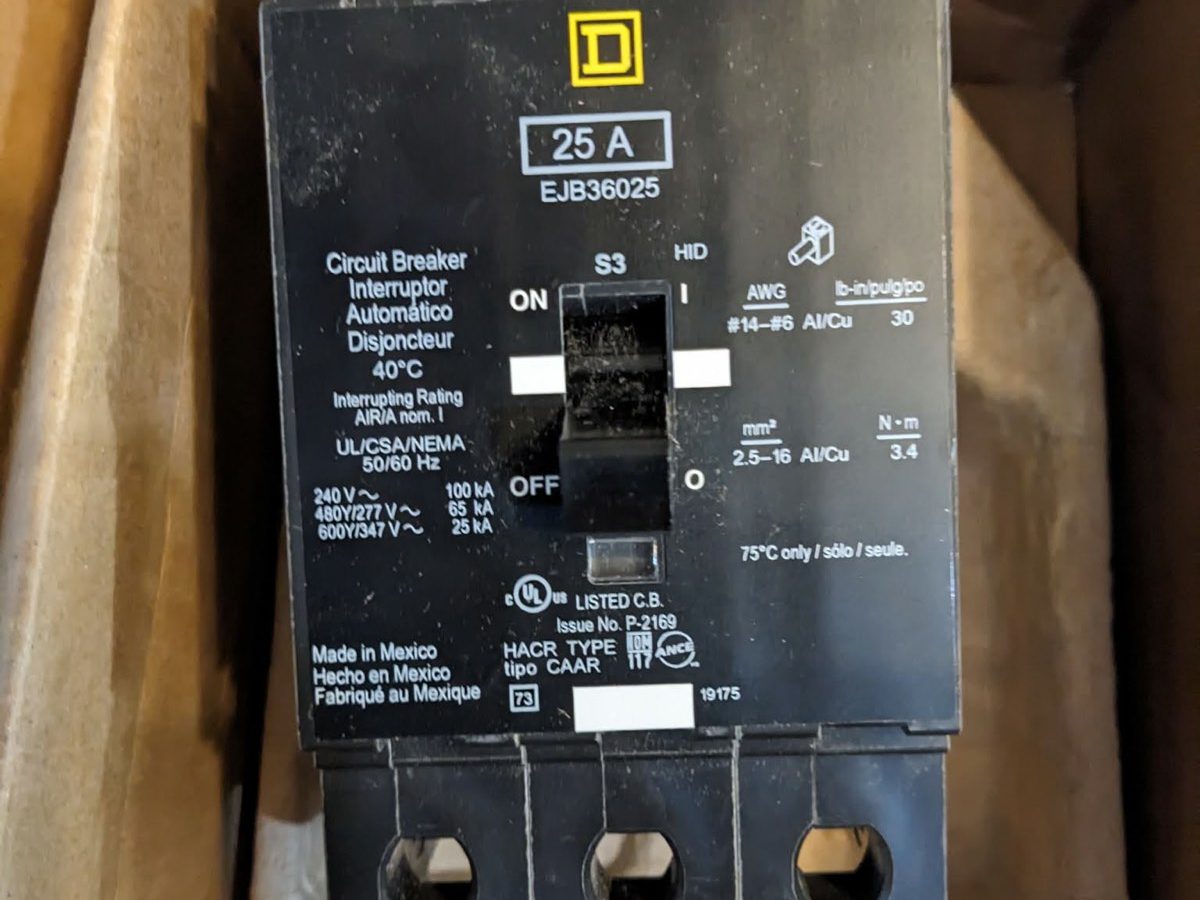

Single Square D EJB36025 bolt-on branch breaker, 25 A, three-pole. Clean and unused, in its box.
From the label: 40 °C rated, UL/CSA/NEMA, 50/60 Hz. Interrupting ratings 100 kA at 240 V, 65 kA at 480Y/277 V and 25 kA at 600Y/347 V. Wire range #14–#6 AWG Al/Cu at 30 lb-in (2.5–16 mm² at 3.4 N·m), 75 °C conductors only. HACR type. Date code 19175.
This is the 347/600 V family — the usual three-phase distribution voltage in Canadian commercial and industrial buildings, including most greenhouse ranges of any size.
Sold as-is. Installation by a licensed electrician.
