Available
Square D EJB36020LH circuit breakers — 20 A, 3-pole, 2 available
Specifications
| Stock # | GH-1133 |
|---|---|
| Make | Square D |
| Model | EJB36020LH |
| Year | 2017 |
| Condition | Good |
| Quantity available | 2 breakers |
| Located at | Our yard |
Description
Two Square D EJB36020LH bolt-on branch breakers, 20 A, three-pole. The date codes differ (17441 and 17445), so these are two separate units rather than a matched pair, though both are 2017.

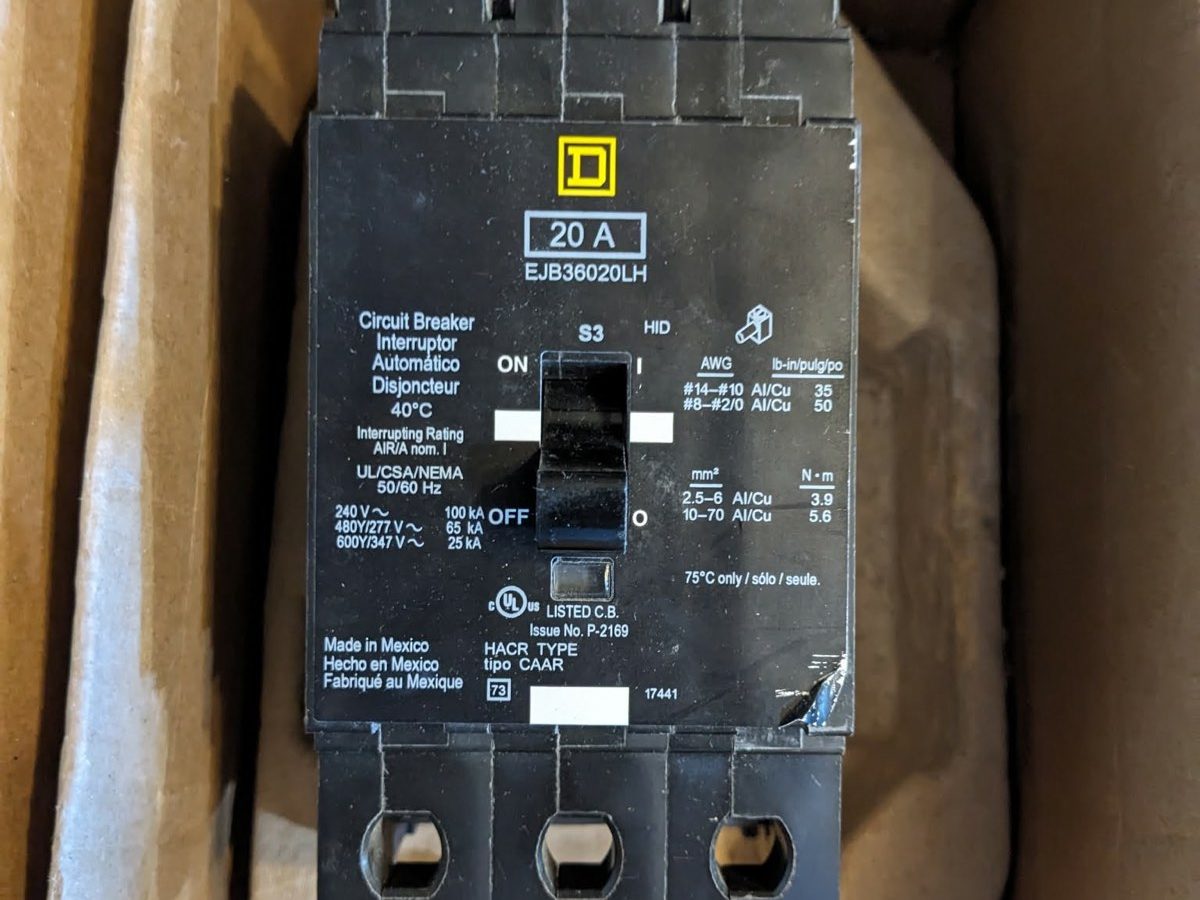

From the label: interrupting ratings 100 kA at 240 V, 65 kA at 480Y/277 V and 25 kA at 600Y/347 V. Wire range #14–#10 AWG Al/Cu at 35 lb-in and #8–#2/0 at 50 lb-in, 75 °C only. HACR type.

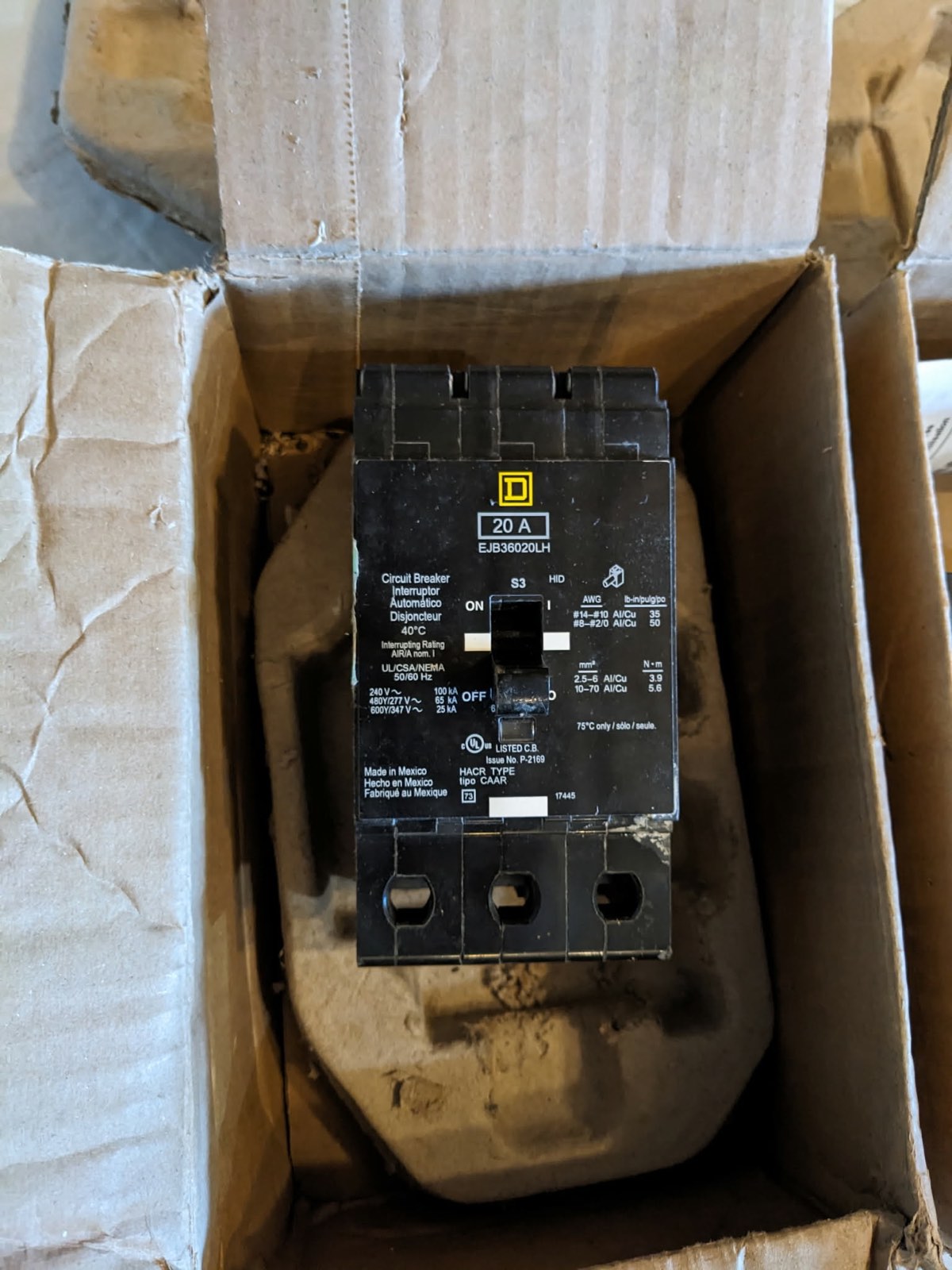

Condition is honest rather than pristine: the breakers themselves are unused and unmarked, but one has been sitting in a dusty carton and the box shows it. The breaker does not care; we mention it so the photographs do not surprise you.
Call for pricing on one or both. Sold as-is, installation by a licensed electrician.
